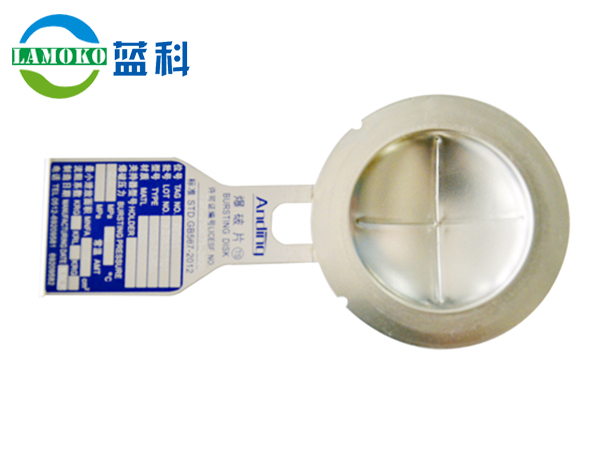

Reverse arch grooving type bursting disc YC
On the arch surface or concave surface of the blasting piece, there is a "ten" shape weakening slot, the convex contact medium, and the concave side at the discharge side. During blasting, the bursting piece breaks along the concave side and breaks along the groove, and the discharge pressure.
Product characteristics:
1. suitable for gas phase and liquid medium.
2. suitable for medium and high pressure conditions.
3. there is no debris after blasting. It is recommended to use the safety valve in tandem.
4. without additional pressure bracket, it can withstand full vacuum state
5. the maximum working pressure can reach 90% of the minimum allowable blasting pressure.
6. if the fluorine is coated or coated with PTFE, the highest service temperature is 260 degrees centigrade.

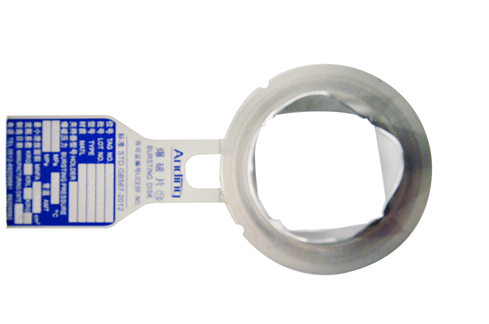

Schematic diagram after blasting:
